1. High energy density product series: 270wh/kg, 320wh/kg, 330wh/kg, 340wh/kg
2. High voltage 4.35V series products: 20Ah, 25Ah, 27Ah, 30Ah
3. Super capacity: All product capacities are higher than the nominal capacity
4. Long cycle life: 800cycle (0.5C/0.5C 100%DOD)
5. High safety (some products can be punctured without fire or explosion

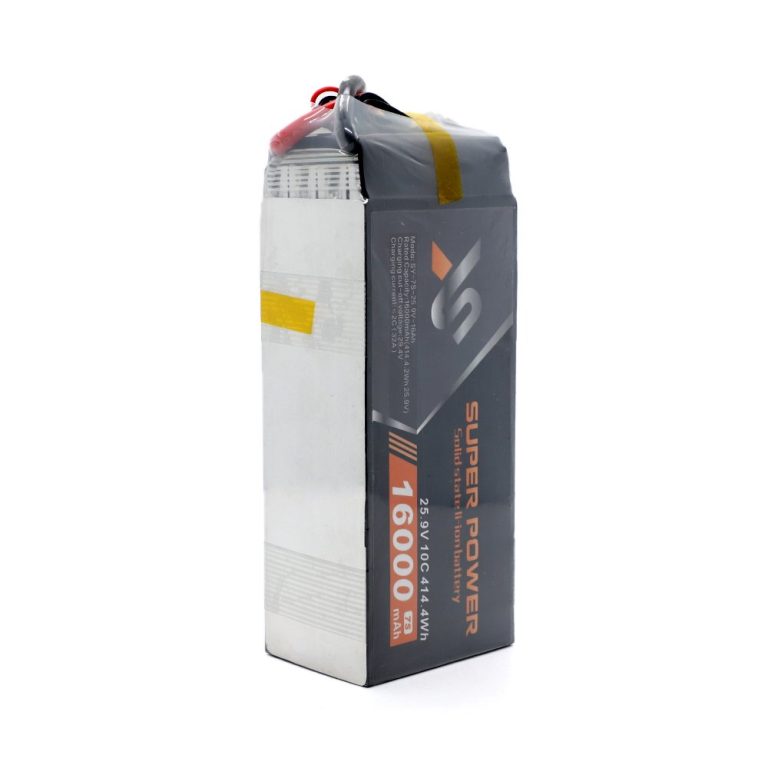

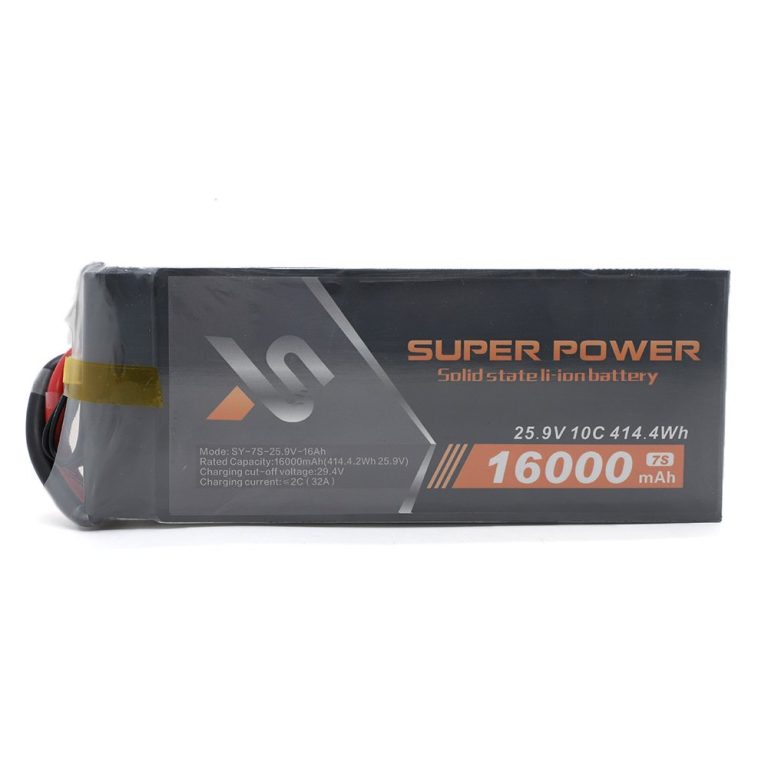

| Model | SY-7S-25.9V-16Ah |
| Nominal Capacity | ≥16Ah |
| Nominal Voltage | 3.7V |
| Charging Cut-Off Voltage | 29.4V |
| Discharge Cut-off Voltage | 19.6V |
| Configuration | 7S1P/25.9V |
| Discharge Rate | 3-5C |
| Max Rate | 10C |
| Net Weight | 1.77kg |
| Dimensions | 195*77*60mm |
| Connector Type | XT90S-F/AS150-F/… |
| Discharge wire | 10#/8# AWG |
| Charging wire | 22# AWG |
| Charge Rate | 0.5C-2C Recommended，2C Max |
| Long Cycle Life | 1000times （0.5C/0.5C；100% DOD） |
| 500times （0.5C/3C；100% DOD） | |
| High-Energy Density | 234wh/kg |
